Technical Specifications of Y60 General Pressure Gauge?
?Parameters:?

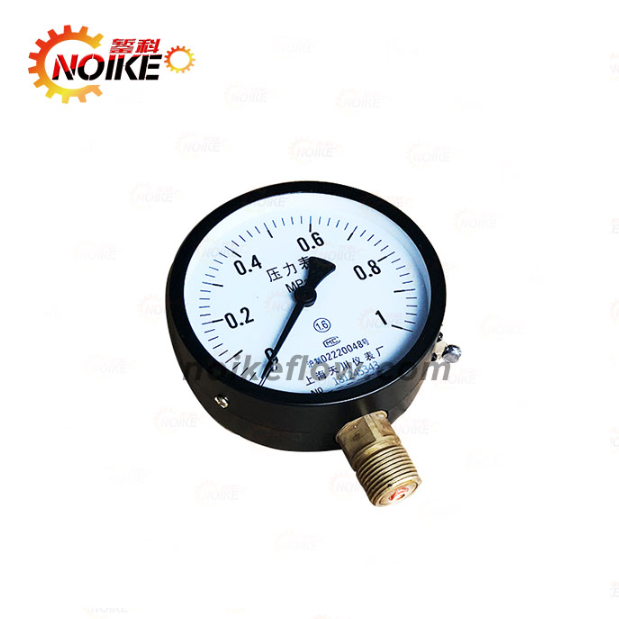

Model: Y-100 General Pressure Gauge
Dial Diameter: Ф100mm
Connection Size: M20X1.5 (Note: 1MPa = 10kg pressure)
Measuring Range: Full specifications (customizable according to client requirements)
Mounting Type: Radial
Accuracy Class: 1.6
Materials: Iron casing, brass movement, brass connection
Color: Black body with metallic connection
Operating Conditions: -40 to 70°C, relative humidity ≤85%
Temperature Effect: ≤0.4%/10°C when operating temperature deviates from 20±5°C
?Application:?
This general pressure gauge is suitable for measuring the pressure of non-explosive, non-crystallizing, non-solidifying media (liquids, vapors and gases) that do not corrode copper and copper alloys.
