Principle of Structure

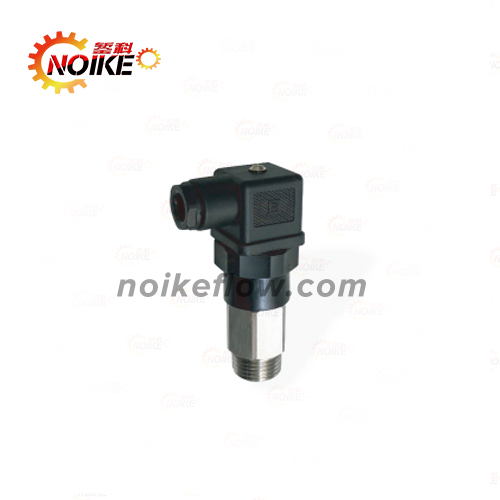

Compact diffused silicon pressure transmitter, the best choice for OEM customers wide use of temperature zone, compact structure, suitable for harsh environment, high reliability. Wide range (0... 60bar), which can be used for measuring gauge pressure and absolute pressure. Suitable for mechanical equipment, hydraulic pneumatic device, locomotive, pressure control.

Technical Parameters

◇Overload range:10 or less bar,4x;600 bar,or less 2x

◇Cardiac precision:0.1%, 0.2%, 0.5%

◇ linearity:Plus or minus 0.2%

◇ repeatability:0.1 mm or less FS

◇ Stability:Better than 0.01% annual range

◇ temperature impact:"Plus or minus 0.02% FS/K

◇ response time:< 1 ms (10... 90% FS)

◇Cardiac power supply:10... 30VDC (3 - wire 14...30 v)

◇Cardiac load:

10k or higherΩ(0...10 v),

5k or moreΩ(1...5v)

(UB - 10 or less)V, 0.02A (4...20 ma

◇ energy consumption:Signal current (2-wire), 8mA(3-wire)

◇ electrical protection:Overload/invert protection

◇ ambient temperature:- 30... 85 °C

◇ medium temperature:25... 80 °C

◇ storage temperature:- 30... 100 °C

◇ protection level:IP65

◇Shell material:Stainless steel 304

◇ liquid receiving material:Stainless steel 316 l

◇Seal:Element fluorine rubber

◇Weight:0.10 Kg

◇ Electrical connection:Hersman joint

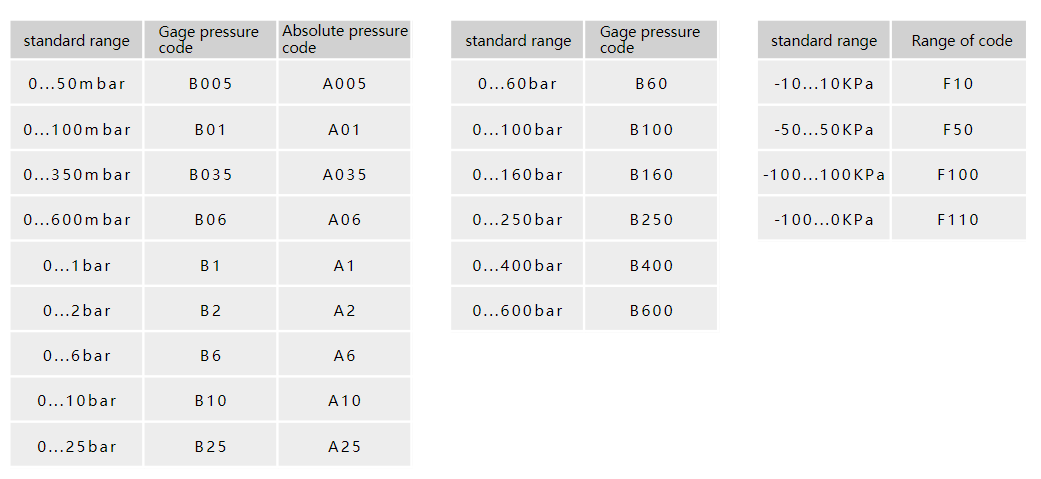

Range of code

Hersman joint
