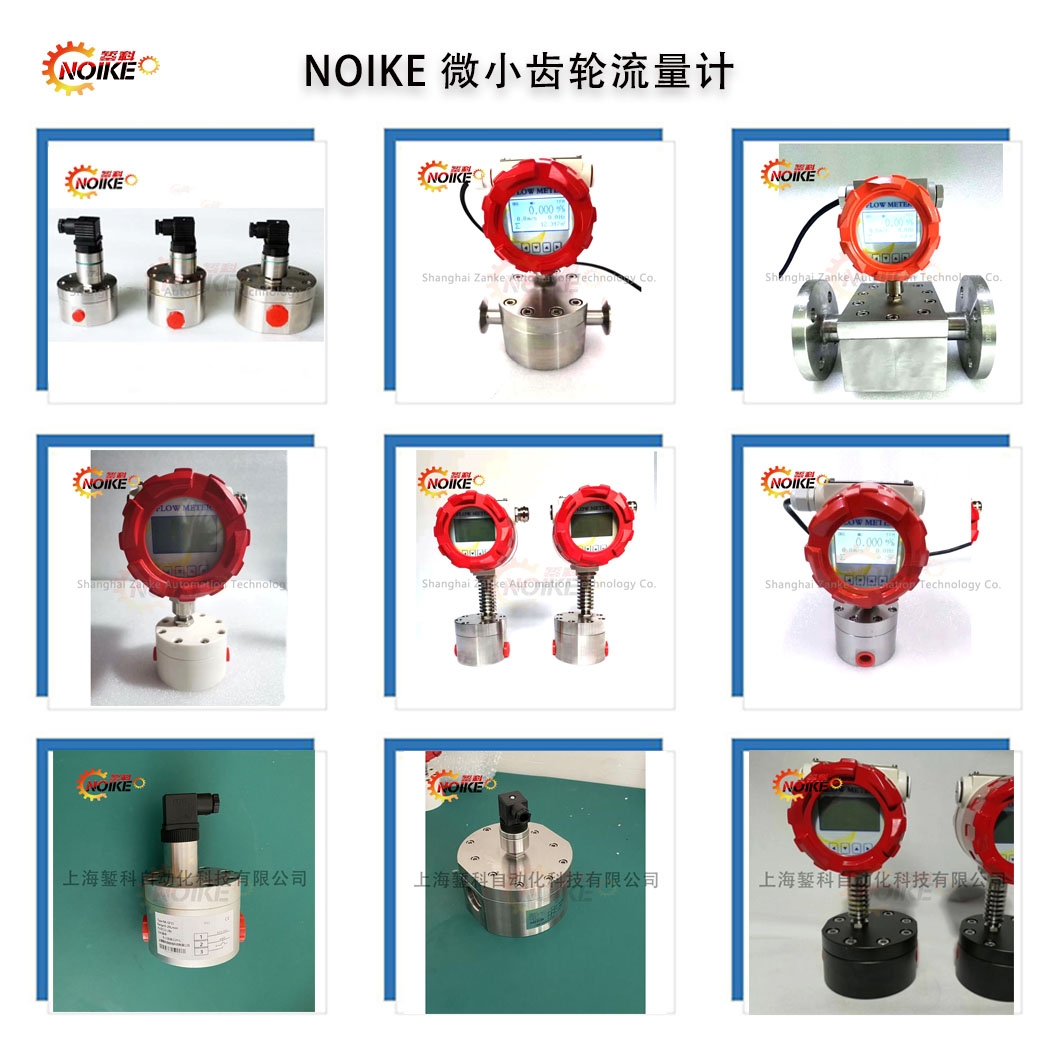

Product Overview:

The gear flow sensor has built-in double gears to operate, and calculates the volume of the medium through the high-precision gear volume to achieve the measurement of micro fluid media. It is a new type of volumetric flow sensor, used for precise continuous or discontinuous measurement of the flow or instantaneous flow of liquid in the pipeline.

Technical Parameters:

△Measuring range: Measuring range: 0.005～330L/min (support customized range)

△Output signal: pulse, 4-20mA, PNP/NPN

△Measurement accuracy: 0.5%F.S

△Repeatability: 0.1%F.S

△Power supply: 16～30VDC

△ Pressure resistance: aluminum (150bar) stainless steel (400bar) PP (pressure resistance 50bar)

△Material: Shell: aluminum, stainless steel, PP

△Display: stainless steel

Technical Parameters:

Following are the benefits or advantages of Oval Gear Flowmeter:

?It delivers higher measurement accuracy (about 0.25%).

?It is suitable for high viscosity media.

?It operates in both the directions viz. forward and reverse.

?Inlet and outlet sections are not required as there is no flow profile.

?It does not require any external power supply.

?It can be used for high temperatures (upto 300oC) and pressures (upto 10 MPa).

?Wide range of materials are used for its construction.

Applications:

mdash;Resin and glue measurement

mdash;Hydraulic oil, lubricating oil, grease measurement, fuel oil measurement, ink, asphalt measurement

mdash;Liquid nitrogen, freezing liquid, solvent measurement edible oil, fish oil and food filling measurement

mdash;Chemical and anti-corrosion requirements fluid measurement fluid quantitative control system

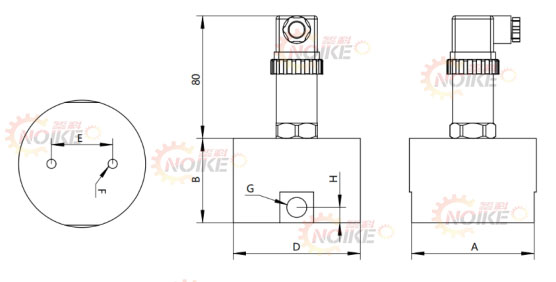

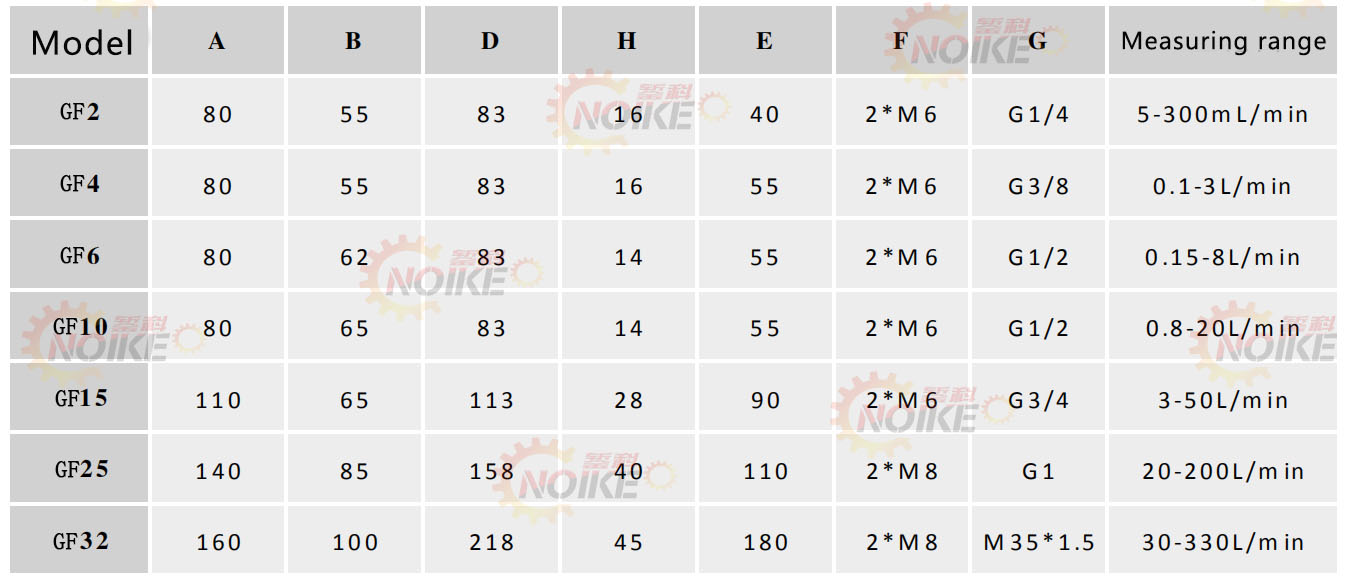

Models:

For more product detailsand purchases, please contact E-mail:noike009@foxmail.com / noike009@163.com
